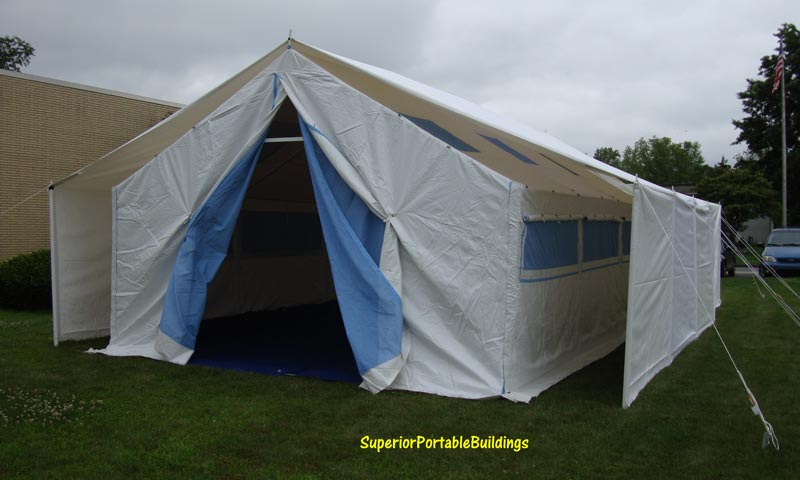

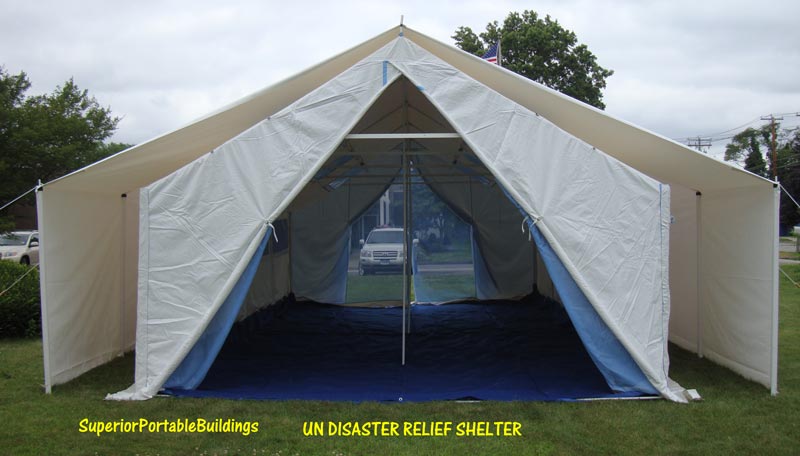

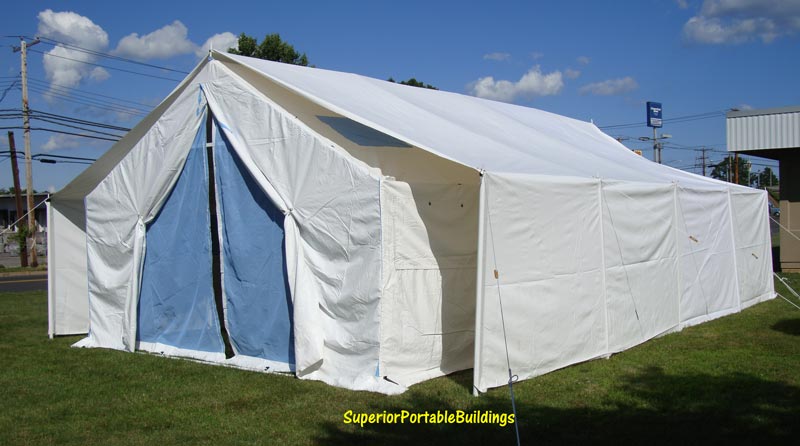

The UN Relief Tent is designed in accordance with
the guidelines set by the United Nations. The UN had
set up a fund, which would enable it to move
supplies and equipment quickly, and in large
numbers, to affected areas. It eliminated the need
to wait for a financial boost from donations and
allowed funds to be available immediately. The
versatility and ergonomic features of the UN Relief
Tent made it ideal for this program.
Assembling the shelter requires minimal effort
and eliminates the need for tools. The parts for the
frame are manufactured using heavy duty structural
steel. The use of CPAI-84 rated PVC fabric, for the
main cover and the doors, ensures ruggedness and
durability, along with the added protection of being
fire retardant and UV resistant. All door flaps
feature Velcro hold-ups and mosquito screens.
Ratchet
straps come standard with Rhino Shelters. The
shelter cover never loosens or sags, thanks to the
strong webbing material used in the ratchet strap.
The tight fit allows the ratchet straps to withstand
much higher snow loads than ordinary rope. A
heavy-duty fabric floor kit is included in the
package, as is an anchor system.
Exclusive
Disaster Relief Tent Features
- Two (2) PVC Fabric Doors With Screen
- Heavy duty 1 5/8" Dia. Structural Steel
Frame
- Doublefly Cover Design
- Ratchet Straps for a Drum Tight Fit
- Velcro Windows With Mosquito Screen

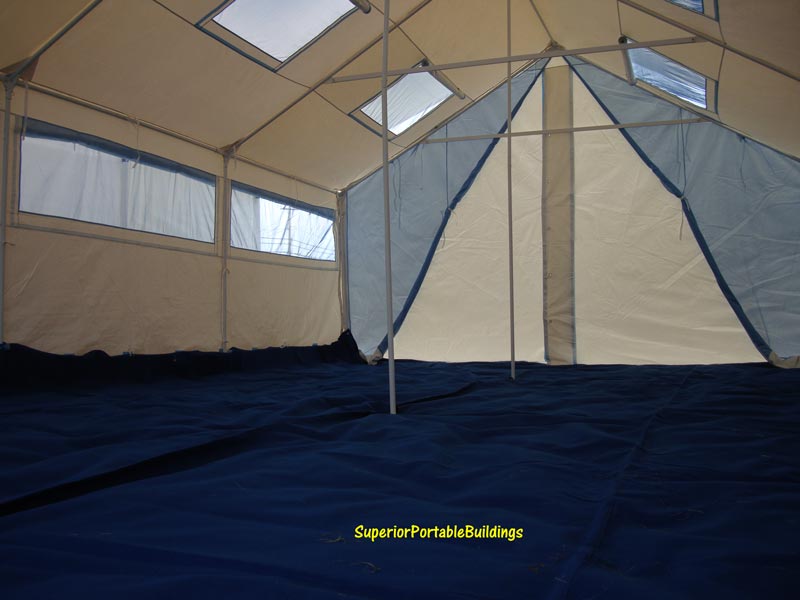

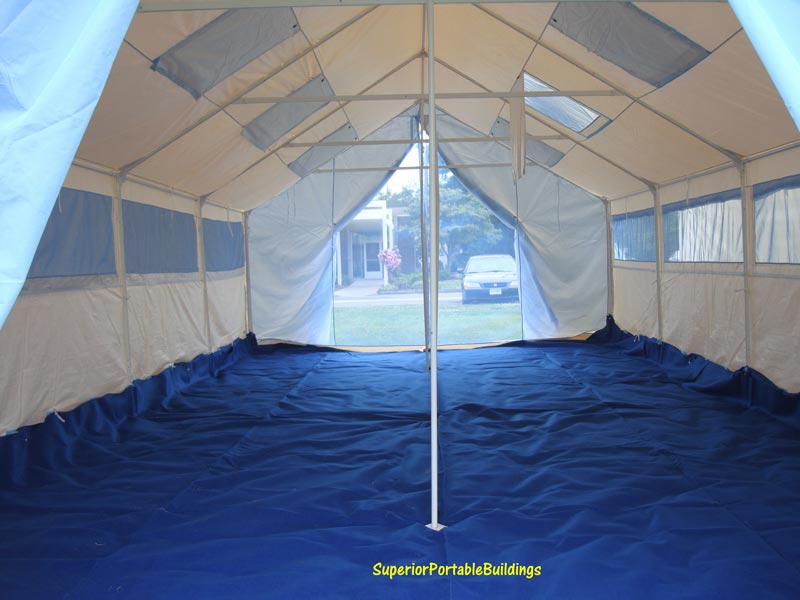

- Roof Truss and Removable Center Supports
- Fabric Floor Kit
- Complete Anchoring System Included
- 18 oz. CPAI-84 PVC Vinyl Cover and Doors
- 1,090 lbs. shipped in Ten (10) Boxes Via
Motor Freight
Box Dimensions
Box 1: 116" Long x 10" Wide x 4.5" High
Box 2: 100" Long x 10" Wide x 3" High
Box 3: 97" Long x 8.5" Wide x 6" High
Box 4: 90" Long x 12" Wide x 4.5" High
Box 5: 80" Long x 8.5" Wide x 4.5" High
Box 6: 27" Long x 22" Wide x 9" High
Box 7: 23" Long x 22" Wide x 5" High
Box 8: 59" Long x 23" Wide x 8" High
Box 9: 59" Long x 26" Wide x 8" High
Box 10: 59" Long x 27" Wide x 8.5" High
DATA SHEET
- Anchors Eight (8)
Stake in Anchors
- Arches Five (5) on
48" spacing: 1-5/8"
galvanized frame members
- Available Colors
White
- Fire Retardant
Standard Main Cover &
Doors meet CPAI -84
Section 5
- Interior Color White
- Main Cover UV
protected PVC Vinyl
fabric, 18 oz. weight
- Nominal Size 18'
Width x 32' Length x 15'
Height
- Shipping Method
Shipped via Motor
Freight Only
- Shipping Weight
1,090 lbs. shipped in
two (2) boxes and seven
(7) Bags**
- Standard End Door
Size Two (2) 16' Width x
13' Height
