40'W x 60'L x 18'H Round Domed Truss Portable Building

40 x 60 Buildings provide the best in instant and portable protection for any purpose. Typical uses include large workshop areas, animal protection, long term jobsite storage, and multiple truck or car storage.  Completely packaged and ready for quick assembly.  The frame is the heaviest available in single tube construction.   Main Cover and Doors are made from long life UV Resistant Fire Retardant Poly with woven backing. All fabric components feature Heat Welded Seam construction. Unit features a unique dual cover tensioning system that allows quick adjustment both front to back and side to side.  The easy up door can be winched up from outside the building with little effort.  Wind release flaps on both sides allow for wind absorption. The long lasting cover design provides for runoff of rain or melting snow to avoid water getting in through the perimeter of the cover. Each unit comes equipped with duckbill earth anchors to secure the unit at 14 strategic points. One Roll-up door kit is included (enough for one end) .

click here for shipping information




Exclusive MDM House Style Features:

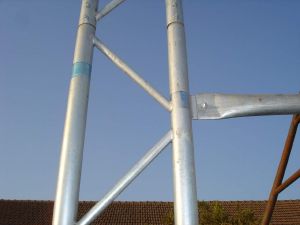

• Heavy Duty Galvanized Finish on All Steel Frame
   Components for Maximum Strength & Long Life
• Easy Bolt Together Design - all Pre-drilled & Cut
• Wind Brace Support in All Corners
• 12' x 11' Mechanical roll up door design

• One Roll-up Door Kit Included
Standard Specifications:
Nominal Size 40’ Wide x 60’ Long x 18’ High
Arches Eleven (11) on 40” Spacing 2 3/8” Frame Members
Standard End Door Size 12' x 11' Mechanical roll up design
Available Colors Outer Colors - White, Grey , Green
All Interiors - White Only

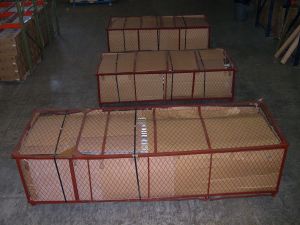

Shipping Weight 4200 lbs shipped in 4 crates via motor freight
Main Cover UV Protected Fabric Backed Poly Material 24 mil, fabrix backed ply 10oz.
Fire Retardant Standard Main Cover & Doors meet CPAI -84 Section 5
Anchors* Twenty-two(22) 36” Duckbill with u-bolts and drive rod included.
Retail Price $22,500.00
