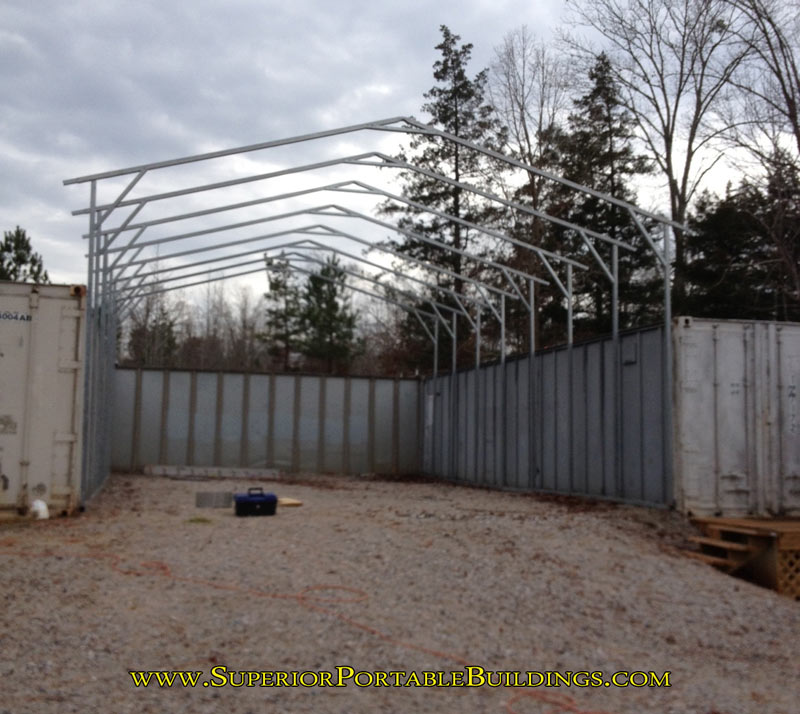

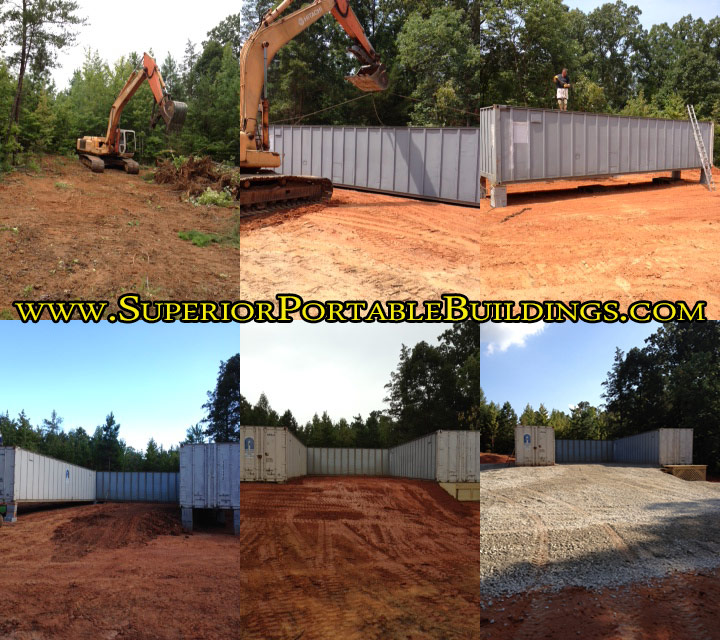

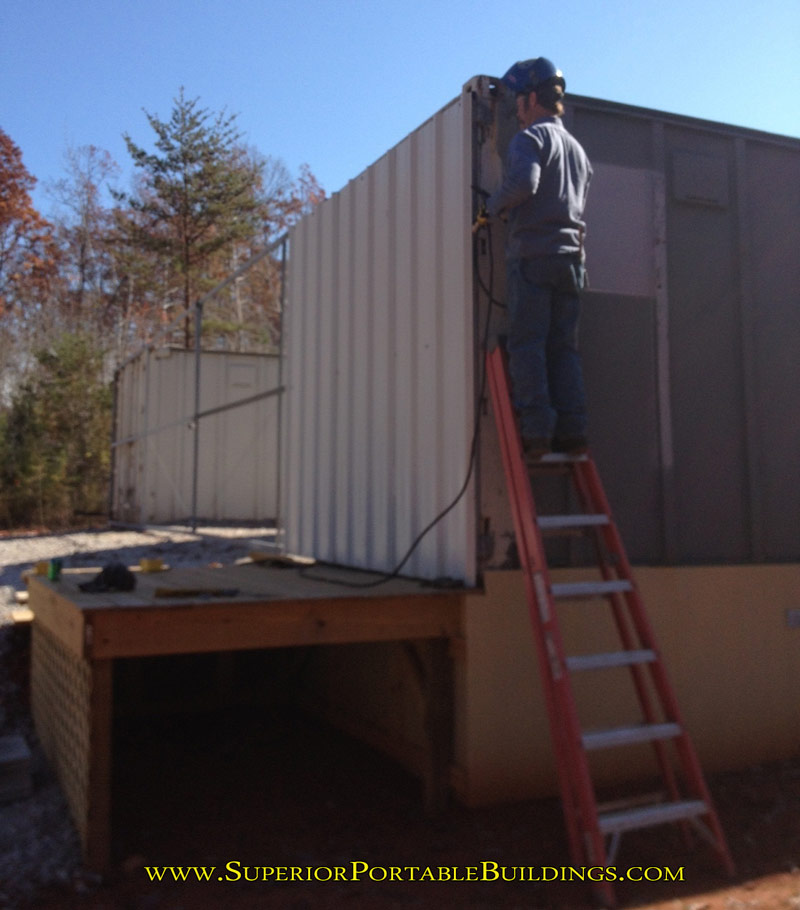

Boxed Eve / A Frame pole barn straight metal roof. 44' wide x 60' long x 15.5' peak height. This building is built over 3 - 40' long truck shipping containers. The containers were set up in a U shape. One on each side and one in the back. The customer welded a custom set of metal doors across the front of the building. He stores a RV and misc items in the center 24' wide bay. This pole barn roof cost about $11,000.00 plus tax.

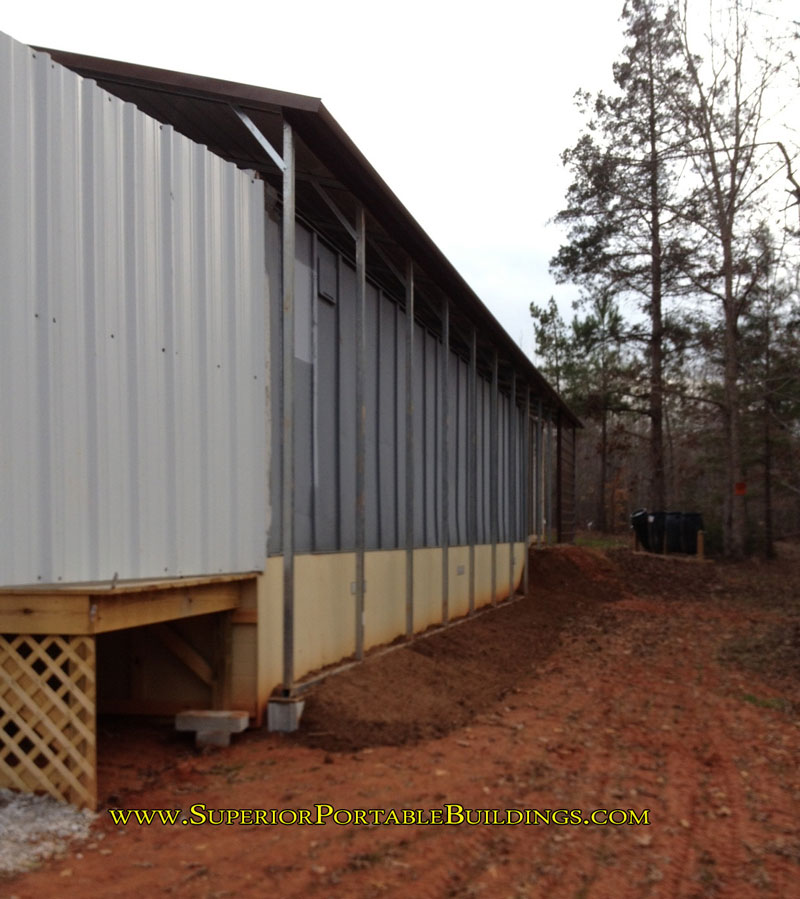

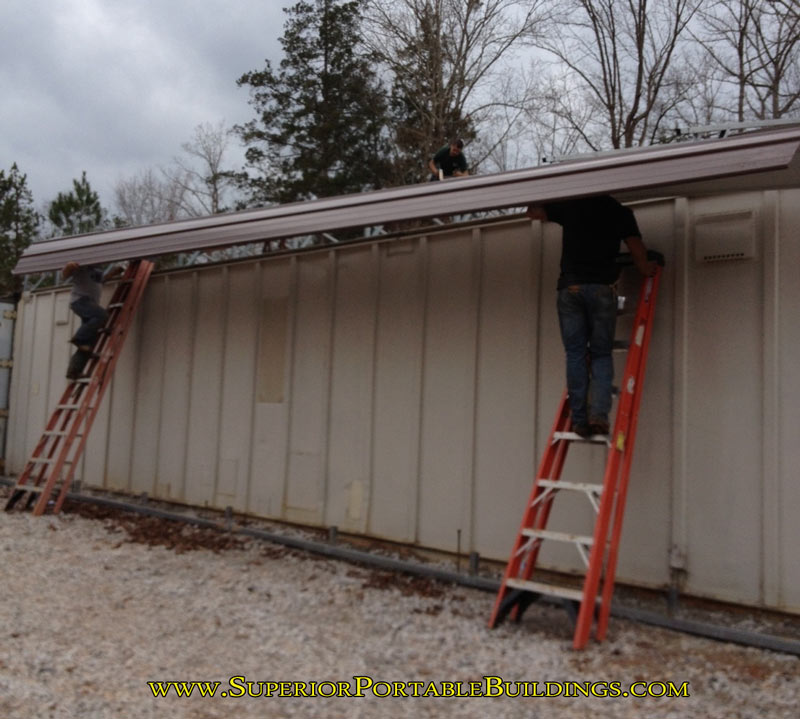

Left lean to is 10' wide by 61' long by 10' leg height.
Center section is 24' wide by 61' long by 12' leg height.
Right lean to is 10' wide by 61' long by 10' leg height.

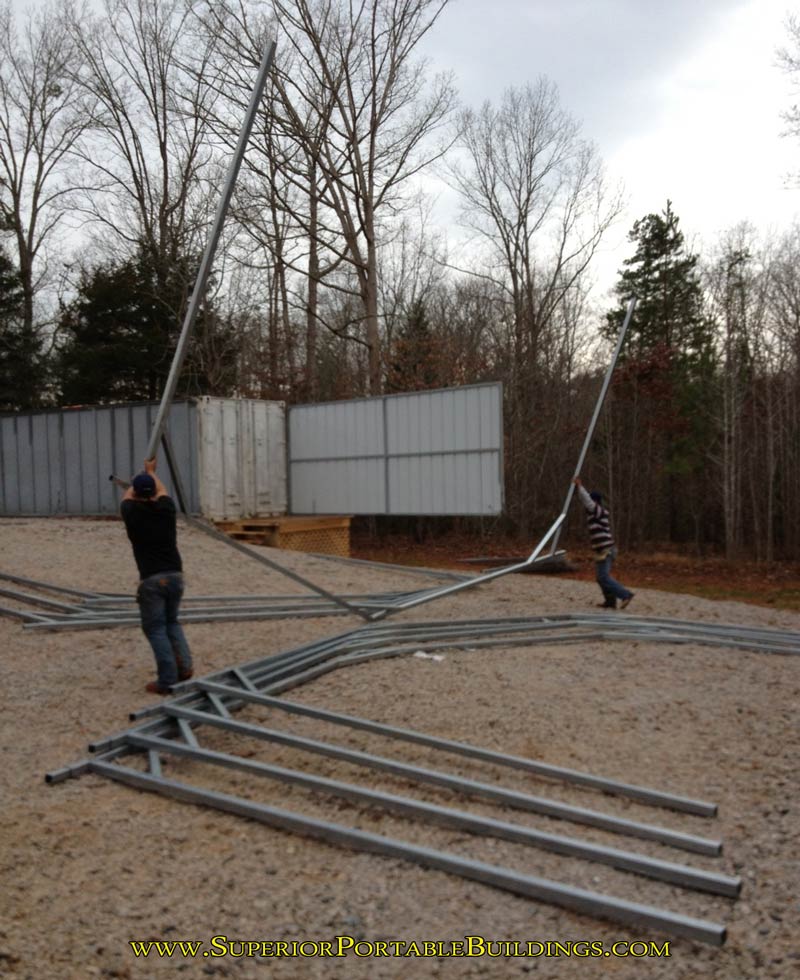

Three custom headers were cut and welded into the frame of the building to allow the frame work to sit over the rear shipping container. The customer could also store items behind the building in the 10' covered area.
Steel Barn Center Carport 24' Wide x 61' Long x 12' Leg Height |
|
---|---|
To build it on-line, choose these options: | |
Gauge: | 14 |
Width: | 24 |
Length: | 61 |
Height: | 12 |
Style: | B |
Vertical Roof: | No |
Close Right side: | No |
Close Left side: | No |
Close Back End: | No |
Close Front End: | No |
Optional Items: | Quantity: |
Attach Fees: | 4 |
3' Bracing Package: | 1 |
Garage Door Opening In Side: | 3 |
Steel Barn lean tos: 2 - 10' wide lean tos or 1 - 20' wide building: 20' Wide x 61' Long x 10' Leg Height |
|
---|---|
To build it on-line, choose these options: | |
Gauge: | 14 |
Width: | 20 |
Length: | 61 |
Height: | 10 |
Style: | B |
Vertical Roof: | No |
Close Right side: | No |
Close Left side: | No |
Close Back End: | No |
Close Front End: | No |
Optional Items: | Quantity: |
2' Bracing Package: | 1 |

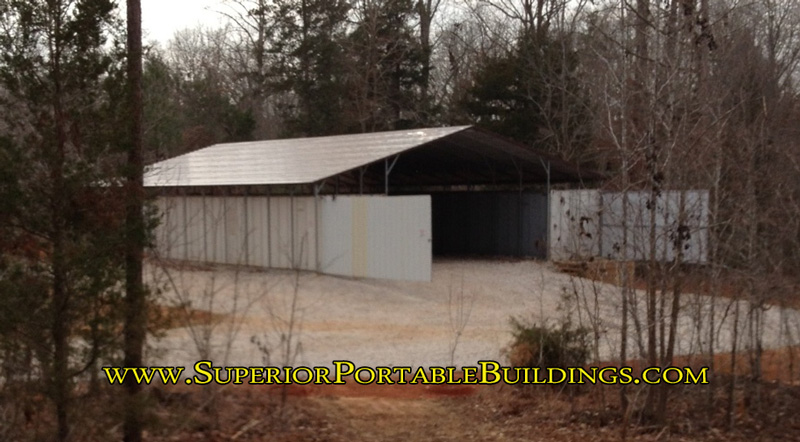

44' wide by 61' long x 12' leg height A Frame pole barn straight metal roof.
Additional openings could be placed in the sides for $200.00 each.
This barn has the standard 14 gauge frame. A heavy duty 12 gauge frame option is available. A vertical roof could have been placed on this unit for an additional $1800.00.
